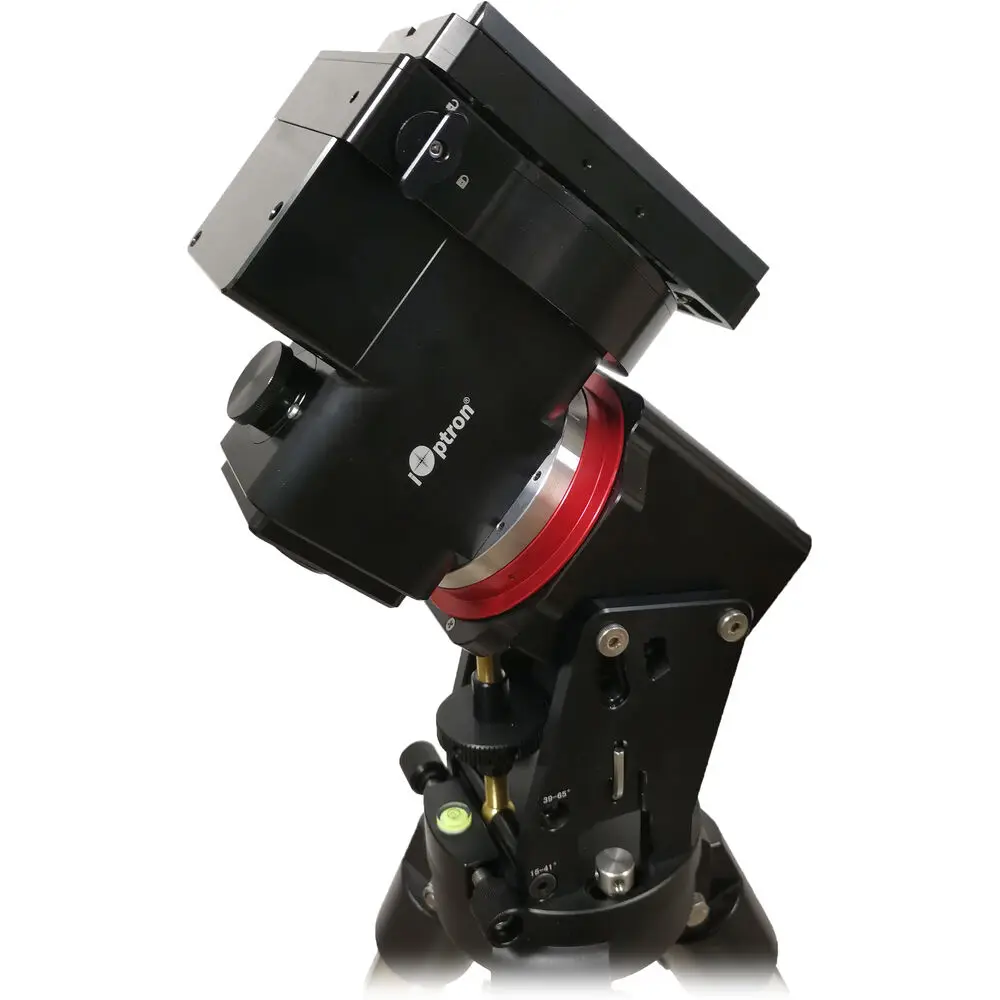

iOptron HEM44EC Hybrid Strain Wave EQ Mount Head with High Precision Encoders

Quick Overview

• Advanced strain wave drive technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
• CNC machined
• Unique friction brake to safely stop movement during a planned or unplanned power interruption270 second gear period
• High precision encoder with realtime PEC (RPEC)
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Cable management system, no hanging exterior cables to moving parts
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Aluminum carrying case
• Two year warranty

Product Details

Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.

Freedom from cumbersome counterweights and shaft is here!

Introducing the HEM44EC, iOptron’s latest revolutionary hybrid strain wave gear mount. This light weight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 13.65lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

A HEM44 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HEM44EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

HEM44 mounts with low latitude range (0~22 degree) are available via special order.

Specifications:

• Mount: Hybrid Strain Wave Equatorial Mount
• RA gear system: StrainWave
• DEC gear system: Backlash-free worm/belt system
• RA reduction ratio: 640:1
• Payload w/o CW*: 44 lbs (20 kg)
• Mount weight:13lbs (5.9kg) w/o dovetail saddle13.65lbs (6.2kg) with dovetail saddle
• Payload/Mount weight: 3.23
• Payload with CW*: 55 lbs (25kg)
• Period: 270 second
• Drive motor: Stepper motor
• Structure Material: All metal, CNC machined
• Exterior finish: Anodized black
• High precision encoder: Yes (RA)
• PEC: Yes, Realtime PEC
• Latitude adjustment range: 15º ~ 65º
• Azimuth adjustment range: ± 6º
• Polar Scope: iPolar electronic polar scope
• Level indicator: Level bubble
• Control system: GOTONOVA/Commander
• Hand Controller: Go2Nova® 8409 with ~212,000 objects database
• Tracking: Automatic
• Maximum slew speed: 4.5º/sec
• Power consumption: 0.6A(Tracking), 1.2A(GOTO)
• Power: DC12V-5A (5.5/2.5mm DC plug)
• AC adapter: 100V ~ 240V (included, indoor use only)
• Cable: No moving/wrapping
• Cable management: 2X12V (4A max.), 1X USB2.0
• Power off brake: Electronic friction brake
• Power-down memory: Yes
• Wi-Fi: Built-in
• Communication port: Yes (Wi-Fi and USB, via HC)
• Autoguide port: Yes (ST-4 compatible)
• Firmware upgrade: Yes
• Dovetail saddle: Vixen & Losmandy
• Tripod: Optional
• Counterweight Shaft :SS Φ20X200mm, M16 thread (Optional)
• Counterweight: 10 lbs (4.5kg)(Optional)
• Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
• Warranty: Two year limited

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

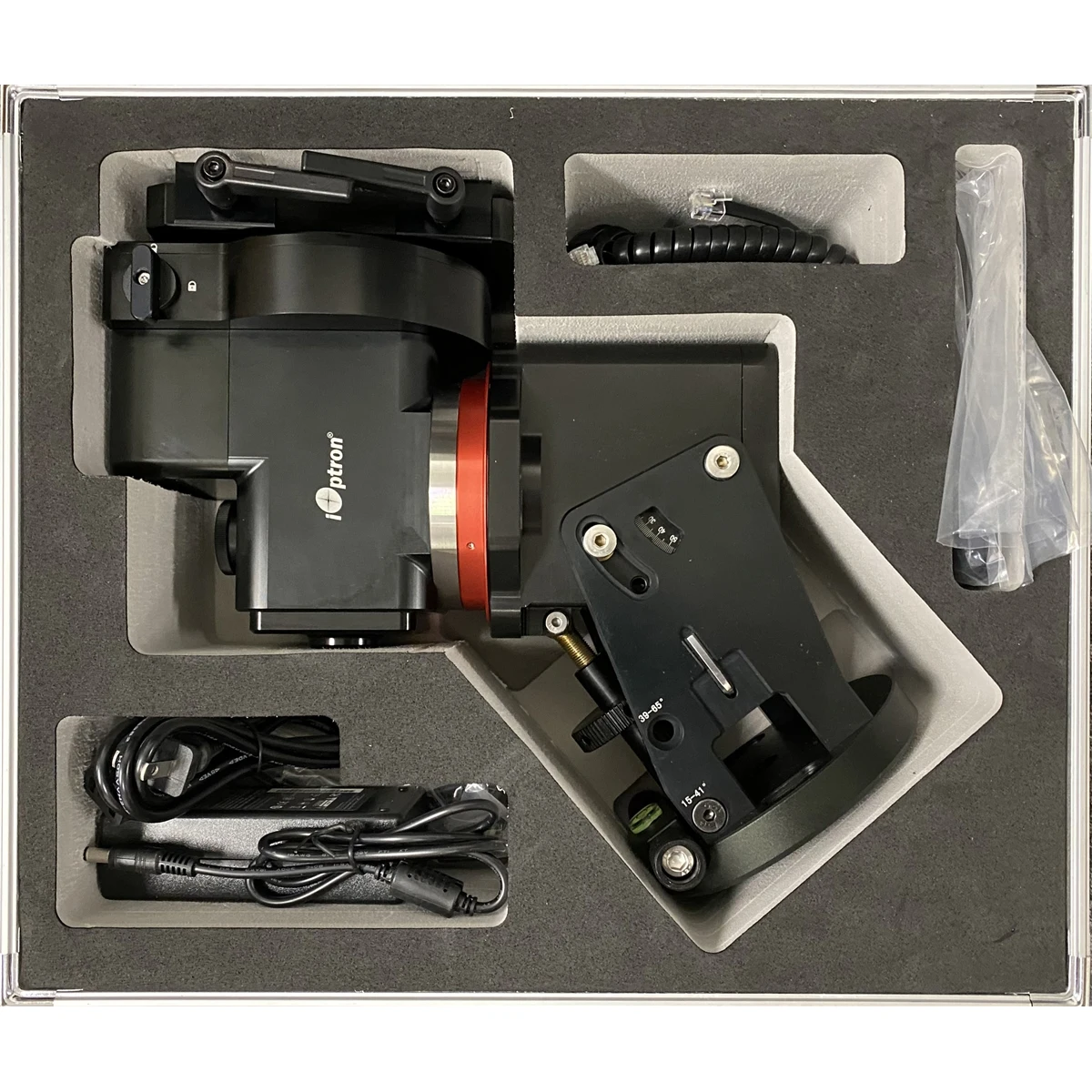

Included Items

• HEM44EC mount head
• iPolar
• Go2Nova® hand controller
• Aluminum carrying case
• Power supply
